KONE TransitMaster™ 120 Escalator

whatsapp chat

Product information

Description

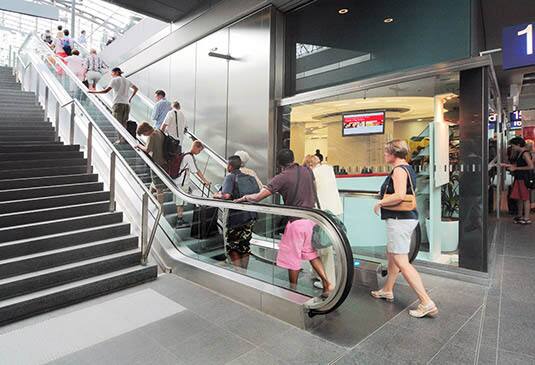

The KONE TransitMaster™ 120 is a durable, eco-efficient escalator optimized for transit centers. It provides a smooth, safe ride and a pleasant passenger experience, even under the most demanding traffic conditions.

Specifications

  • Operational environment: indoor, semi-outdoor, outdoor
  • Speed: 0.5, 0.65, 0.75 m/s
  • Inclination: 27.3º, 30º, 35º
  • Step width: 800, 1000 mm
  • Vertical rise: up to 20 m

Safety

  • Safety is the starting point for every KONE solution. KONE TransitMaster™ 120 conforms to all local and international safety codes.
  • We provide standard safety features including comb plate impact device switches and emergency stop buttons for passengers.

Options and highlights

Travelmaster 110, 120

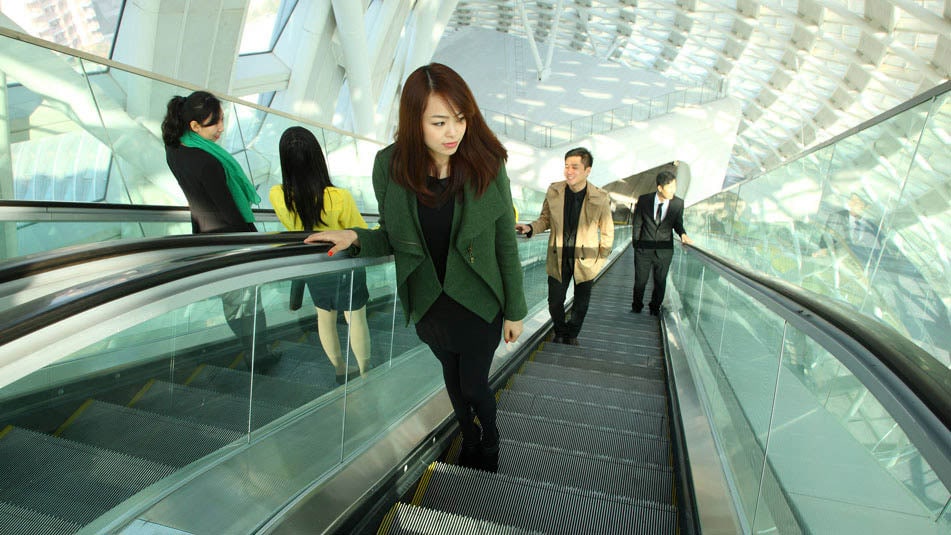

ENERGY-EFFICIENCY

  • Smart operational modes and inverter optimize energy consumption under different load conditions
  • Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
Travelmaster 110, 120

SAFETY ENHANCEMENT

In addition to the standard safety features, we offer optional safety features including:

  • New traffic signalization solutions to provide extra guidance
  • Audible alarms provide clear guidance on escalator travel direction
  • Alarm for travel direction if passengers enter an escalator in the wrong direction
  • Fall-prevention barrier and extended balustrades provide additional passenger protection
Travelmaster 120

DESIGN

High quality visual design for the best possible user experience:

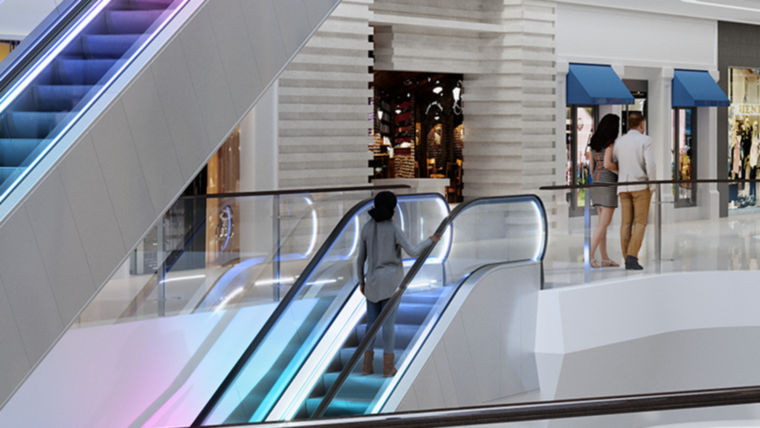

  • Innovative and attractive lighting solutions that also improve passenger guidance and safety
  • Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
  • High quality component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

Tools and downloads

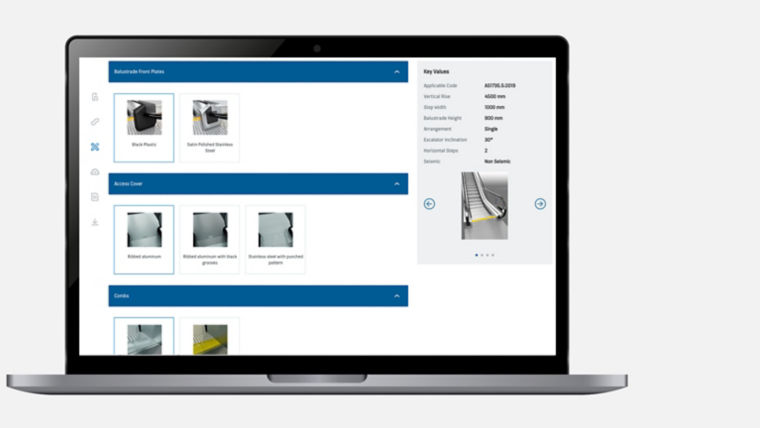

Escalator Planner

Escalator Planner helps you select the right product as well as create detailed specifications, BIM equipment models and CAD drawings for preliminary planning.

Escalator Designer for TransitMaster 120

A handy tool for architects and consultants to quickly generate and print out initial dimension drawings for the KONE TransitMaster 120 escalator.

KONE TransitMaster™ 120

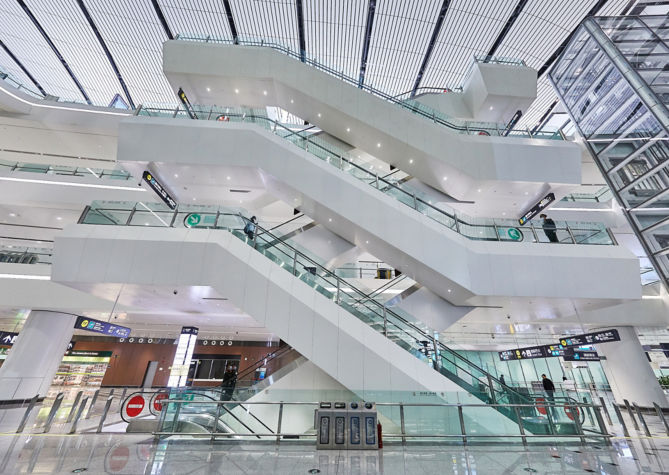

The eco-efficient KONE TransitMaster 120 escalator is designed for round-the-clock operation in environments with medium to high traffic flow, such as mass transit hubs and airports.

KONE Escalator and Autowalk Solutions

Our flexible range of escalators and autowalks can be tailored to a wide range of applications, and are all based on the same reliable technology and modern visual design.

KONE solutions for transit centers

Our range of solutions designed to cope with the tough demands of busy transit center environments includes elevators, escalators, autowalks, and doors.

Escalator and autowalk solutions

Product name
Type
Segment
Maximum rise
Speed
KONE TransVario premium drive availableInclination
24/7 Connected Services available
Energy-efficiency class
TravelMaster 110
EscalatorCommercial, retail, hotel, office, multi-use, stadium, medical
13 m
0.5 m/sTravelMaster™ 110T (factsheet)30°, 35°
YesA+++
TravelMaster 115
Inclined autowalkCommercial, retail, multi-use, airport
7 m
0.5 m/s
10°, 12°
Yes
A+++
TransitMaster 120
EscalatorMetro, airport, station, transport hub, multi-use
20 m
0.5, 0.65, 0.75 m/sTransitMaster™ 120T (factsheet)27.3°, 30°, 35°Yes
A+++
TransitMaster 140
EscalatorMetro, airport, station, transport hub
35 m
0.5, 0.65, 0.75 m/sTransitMaster™ 140T (factsheet)27.3°, 30°YesA+++
TransitMaster 165
Horizontal autowalkMetro, airport, station, transport hub, multi-use
100 m length
0.5, 0.65, 0.75 m/s
0-6°
YesA+++
